Classic Mustang Disc Brake Conversions and Power Steering

SSBC 64 65 66 4 Piston Disc Brake setup A 120D

1964 1965 1966 SSBC MUSTANG FAIRLANE 4 PISTON DISC BRAKE CONVERSION

1964 1965 1966 1967 SSBC MUSTANG FAIRLANE 4 PISTON DISC BRAKE CONVERSION

SSBC STANDARD FRONT DISC BRAKE CONVERSION KIT DUAL BOWL V8 NON-POWER

SSBC Standard Front Disc Brake Conversion Kit with Dual Bowl Master Cylinder for 1964-1966 V8 Mustangs with Standard Brakes.

Caliper Specs:
Type of Caliper - Standard
Number of Pistons - 4
Piston Size - 43mm
Constructed From -Cast Iron

Rotor Specs:
Diameter - 11.25"
Thickness - 0.8125"
Venting -Uni Directional (straight vane)
Standard Finish - Standard
Bolt Pattern - 5 x 4.5"

Kit Features
-Pair of Rotors
-Pair of Calipers
-Front Brake Pads
-Dual Bowl Master Cylinder
-Adjustable Proportioning Valve
-2 Brake Hoses
-Rotor Retaining Hardware
-2 Rotor Splash Shields
-All Brackets, Bearings, Seals & Hardware
-Instructions

*Requires use of 14" or larger wheels
*Master cylinder will not bolt to stock booster on vehicles with O.E. power drum brakes
*Bolts to factory V8 spindle

1965 1966 1967 MUSTANG FAIRLANE CYCLONE SSBC FORCE 10 ALUMINUM CALIPER UPGRADE

SSBC FORCE 10 CALIPERS

Ford Fairlane Comet Cyclone Falcon Mustang 1965 1966 1967

PLEASE SPECIFY Caliper Wanted, 3/8" Port (65-66), or 7/16" Port 1967.

Fit on Stock Disc Brake Systems, Lighter, More Durable SSBC QUALITY!

Front Quick Change Aluminum Caliper Upgrade Kit

Direct bolt-on Force 10 Classic 4-piston aluminum calipers & high performance pads. For cars with 3/8" inlet.

General Specs:

Part Number	A188 3/8"-----A188-1 7/16"
Retail Price	SSBC Retail $638.00 OURS $535.00
Minimum Wheel Size	15"
Axle	Front

Interested in this kit? Send us an e-mail.

Caliper Specs:

Name	Force 10 Classic
Number of Pistons	4
Piston Size	43mm
Constructed From	Aluminum
Standard Finish	Clear Anodized
Optional Finishes	Polished or Powder Coated

KIT FEATURES

Calipers come with clear anodized finish. Optional polishing or powder-coating available.

Direct bolt-on replacement to O.E. 4-piston caliper.

For O.E. disc brake cars with 4-piston caliper.

Includes Force 10 Classic 4-Piston aluminum calipers.

Includes high performance pads.

*NOTE: Must be used with stock size rotors.

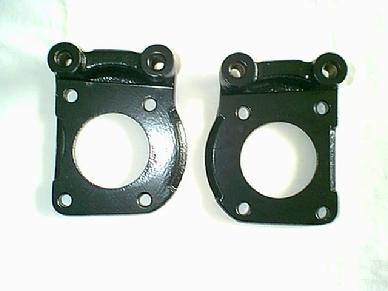

1965 1966 1967 MUSTANG FAIRLANE DISC BRAKE CALIPER BRACKETS

SSBC QUALITY, Exact reproductions of the K/H Brackets to install Factory 4 Piston Disc Brake Calipers on your 64 65 66 67 MUSTANG FAIRLANE COMET FALCON.

Bolts up Perfect to your V8 Spindles (V8 Spindles are ALL the same---Disc, or Drum--No Difference)

Excellent, Guaranteed, Tempered.

See our other Disc Brake items to complete your Disc Brake Conversion.

Credit Card Orders--Please call. 217 882 2083

Visa
Master Card
Discover
American Express

1965 1966 MUSTANG SSBC DISC BRAKES FIT 6 CYLINDER STOCK SPINDLES

1965 1966 SSBC MUSTANG 6 CYLINDER DISC BRAKE CONVERSION

1965 1966 MUSTANG 6 CYLINDER DISC BRAKES SSBC

This is a SSBC QUALITY Disc Brake Conversion to Install POWER DISC Brakes on your 65 66 Mustang Stock 6 cylinder, WITHOUT Changing the Spindles.

Bolts to your Present Spindles.

Includes Single Piston Calipers-Booster Master (No Changing Pedal), Hardware.

Part Number	A120-5
Retail Price	SSBC Retail $995.00 OUR PRICE $959.90
Minimum Wheel Size	14" x 7"
Axle	Front

Interested in this kit? Send us an e-mail.

Caliper Specs:

Number of Pistons	1
Piston Size	57mm
Constructed From	Cast Iron

Rotor Specs:

Diameter	10.25"
Thickness	0.875"
Venting	Uni-directional (straight vane)
Standard Finish	Standard
Optional Finishes	Slotted and Plated
Bolt Pattern	4 x 4.5"

KIT FEATURES

All hardware included.

For 4 lug, 6 cylinder car.

For automatic transmission cars only.

Includes master cylinder and 7" single diaphragm booster.

Rotors available with optional Turbo slotting and Xtra Life plating.

Will not fit stock 13" wheels.

Credit Card Orders, Call

American Express
Visa
Master Card
Discover

1965 - 1973 MUSTANG 1966 - 1971 COMET FAIRLANE TORINO BIG BEARING DISC BRAKES

1965 - 1973 mustang 1966 - 1971 TORINO FAIRLANE DISC BRAKE CONVERSION

SSBC QUALITY!! FORD MUSTANG GEOMETRY.

These are Reproductions of the 70 Mustang/Torino/Cyclone Big Bearing Spindle.

These will fit PERFECT on all 70 -73 Mustang Cougar, and Perfect on all 70 -71 Torino, Montego.

Same Brakes as used on ALL 1970 428 Cobra Jet Mustangs/Torinos/70 Shelbys/Boss 351--BIG STOPPING POWER

Will also fit EXCELLENT on all 65 - 69 Mustangs/All
66 - 69 Cyclones, Falcons, Comets, Fairlanes with the use of the 70Mustang/Torino OUTER TIE RODS---Thats all you will need. Ball joints will bolt up Perfect.

These have the 11 19/64" Rotors, Bigger stopping power than the smaller weaker Granada!!!

Part Number A132-1

Retail Price SSBC $995.00 OUR PRICE $879.00

Minimum Wheel Size 14"

Axle Front

Interested in this kit? Send us an e-mail.
Caliper Specs:

Number of Pistons 1

Piston Size 60mm

Constructed From Cast Iron

Rotor Specs:

Diameter 11 19/64"

Thickness 0.941"

Venting Uni-directional (straight vane)

Standard Finish Standard

Optional Finishes Slotted and Plated
-or-
Drilled, Slotted and Plated

Bolt Pattern 5 x 4.5"

KIT FEATURES

All hardware included.

Includes new spindles.

Master cylinder will not bolt to stock booster on vehicles with O.E. power drum brakes.

Rotors available with optional Turbo slotting and Xtra Life plating

Headline

68 69 70 71 MUSTANG 68 71 TORINO FAIRLANE DISC BRAKE ROTOR SHIELDS

These are the Rotor Shields/Gravel Shields for the 68 - 73 Mustangs Cougar, and the 68 - 71 Torino Fairlane Comet Cyclone Falcon.

Excellent Reproductions, come with Dust shields for rear Bearing/seals.

Guaranteed quality.

Credit Card Orders--Please call. 217 882 2083

Visa
Master Card
Discover
American Express

SSBC PROPORTIONING VALVE ALL IN ONE

SSBC ALL IN ONE PROPORTIONING VALVE

Ford Mustang Fairlane Comet Cougar

This will work on all years, Perform Excellent, Adjust Rear brake-Distribute in one Compact, NEAT Setup.

Parts and Accessories - Prop Block: Adjustable Proportioning Valve and Distribution Block All-In-One

PROP-BLOCK: Adjustable proportioning valve and distribution block all-in-one. Simplifies your brake plumbing! Black anodized finish.

General Specs:

Part Number	A0730
Retail Price	SSBC RETAIL $125.00 OURS $119.90!!

Interested in this kit? Send us an e-mail.

KIT FEATURES

Accepts 3/16" brake line.

Adjustable proportioning valve regulates rear brake pressure, helping to maintain correct brake bias between front and rear brakes. Easy to turn handle with directional arrows makes it simple to either increase or decrease rear brake pressure.

Designed for dual bowl master cylinders.

Distribution block connects to the master cylinder and distributes brake fluid to all four wheels.

Includes 2 inlets from master cylinder, 2 outlets to front brakes and 1 outlet to rear brakes.

Includes 5 stainless steel 3/16" fittings.

Includes wiring pigtail for rear brake light switch.

Mount to any convenient location.

*NOTE: This is not a direct factory replacement for original blocks and some line modifications may be necessary.
